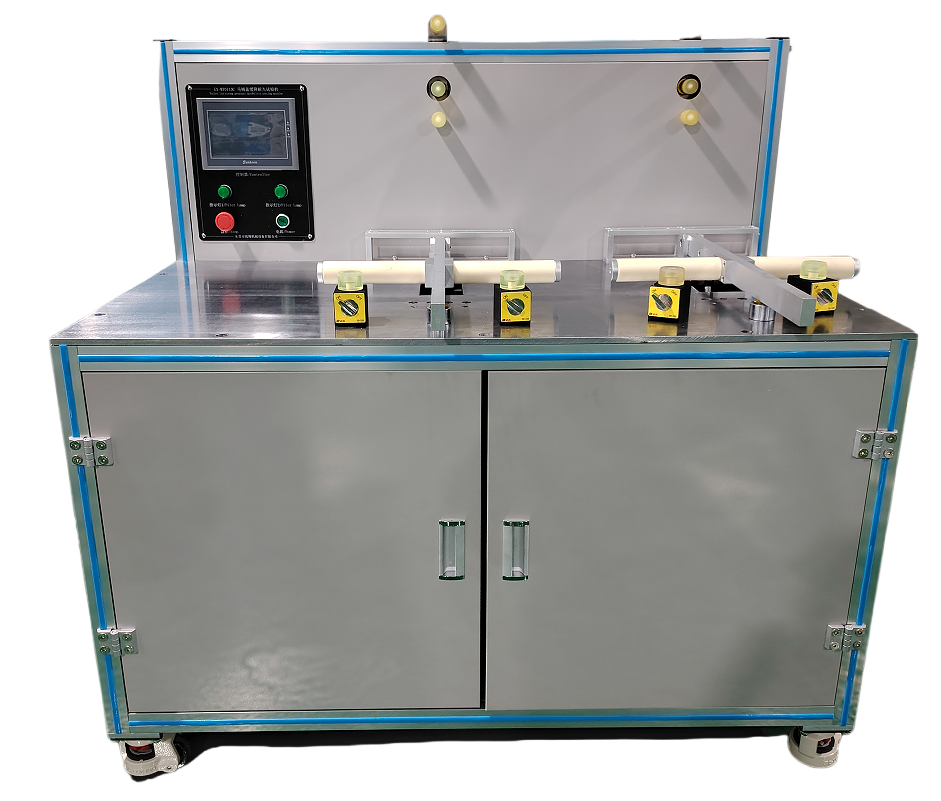

HD Toilet Seat Cover Slow Close Durability Tester

Name: HD Toilet Seat Cover Slow Close Durability Tester
Brand: HAIDA
Price: 1 USD

Quality HD Toilet Seat Cover Slow Close Durability Tester for sale

Type : Testing Machine

Brand Name : HAIDA

Place of Origin : Guangdong, China

Application : Tissue Paper Test

customized support : OEM, ODM

power : 220V 50HZ

Protection Class : /

Voltage : 220 V

Logo/graphic design : Hot Stamping, SCREEN PRINTING

Test station : 2 stations

Number of tests : 0-999999 times can be set

Frequency of tests : 5-15 times/min

Opening and closing angle : 0-120° can be set

Opening pause time : 0.1-99s can be set

Opening method : Cylinder opening

Control Mode : PLC,Touch screen

MOQ : 1

warranty : 1 Year

Contact Now

Product Description

5060-HD

Toilet Seat Cover Slow Close Durability Tester

Simulate the action of a person to open and close the toilet lid, first lift the lid over the plane 90 degrees after the release, to the position of the toilet lid completely open, and then gently push the lid back so that the lid falls down freely, and so on repeated actions to detect whether the product is damaged and the actual number of tests, and record the actual number of tests through the electronic digital counter, once the test piece is destroyed or the test piece reaches the set number of times, the automatic shutdown.

STANDARD JC/T 764-2008 5.4.6

Test steps

lower toggle adjusted in place according to product size  set relevant test conditions (flip angle, rise flip time, fall flip time), start the device  pendulum rises to the set parameters according to the test requirements, then falls back to the origin  back Slow fall device start, seat ring or seat cover less than 90 ° or free fall

Specification

Test station	2 stations
Number of tests	0-999999 times can be set
Frequency of tests	5-15 times/min
Opening and closing angle	0-120° can be set
Opening pause time	0.1-99s can be set
Lowering time	can be displayed and recorded (shutdown function when exceeding the set value)
Opening method	Cylinder opening
Push Cover Mode	Cylinder driving
Push Cover Position	Intermediate parts
Control Mode	PLC,Touch screen

Specification

INDA and EDANA Flushability Testing Guidelines
According to a Code of Practice directive within the Flushability Testing Guidelines, a product that passes all seven tests will be considered flushable. The standards set forth by INDA and EDANA include the following flushability tests:
* FG501.R1(18) Toilet Bowl & Drain Line Clearance Test
* FG502.R1(18) Slosh Box Disintegration Test
* FG503.R1(18) Household Pump Test
* FG504.R1(18) Settling Test
* FG505A.R1(18) Aerobic Biodisintegration Test
* FG506A.R1(18) Anaerobic Biodisintegration Test
* FG507.R1(18) Municipal Sewage Pump Test

Design Features
* Color touch screen display and control, Chinese and English interface, menu-based operation mode.

* Imported rotor flowmeter.
* The core control component adopts ST's 32-bit multi-function motherboard.
